oil Filter

Duplex line filters

描述:

The filter housing and the connectors are designed in accordance with the international standard, widely used in the lubricating oil system of circulating loop, test systems, vehicles, punching machine, ships and offshore platforms etc.

  • oil Filter
  • air filter
  • hydraulic filter
  • hydraulic oil filter
  • suction filter
  • return filter
分享到:

  • 特点
  • 类型选择
  • 技术数据
  • 安装尺寸

产品特点:

Filter basic construction
RFLD series filters are connected by a switch valve, drift diameter DN80 and above is equipped with pressure balance pipeline; below DN80,
the balance valve is put in change-over valve body.This structure reduces the pressure impact on the filter when switching valve,standard filter
is with vent hole, relief hole, and mounting holes of clogging indicator.
 2.1 Housing material
Optional: Ductile iron, cast steel
 2.2 Seals
Perbunan (=NBR)
 2.3 Filter element
Filter medium material
High strength carbon steel skeleton
 2.4 Optional accessories
Without clogging indicator, with steel plug
Visual clogging indicator: CM-03
Electrical clogging indicator: CM-05
Combined visual /electrical clogging indicator: CM-08
Bypass valve (setting 6 bar)

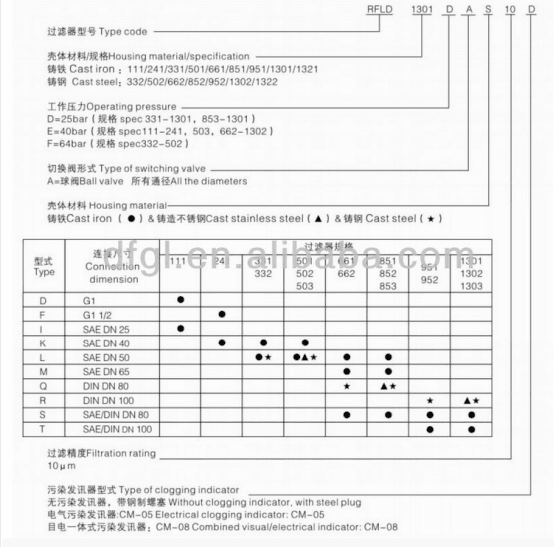

产品类型选择:

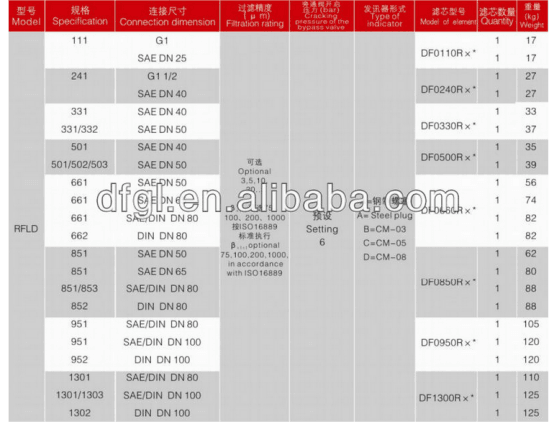

产品技术参数:

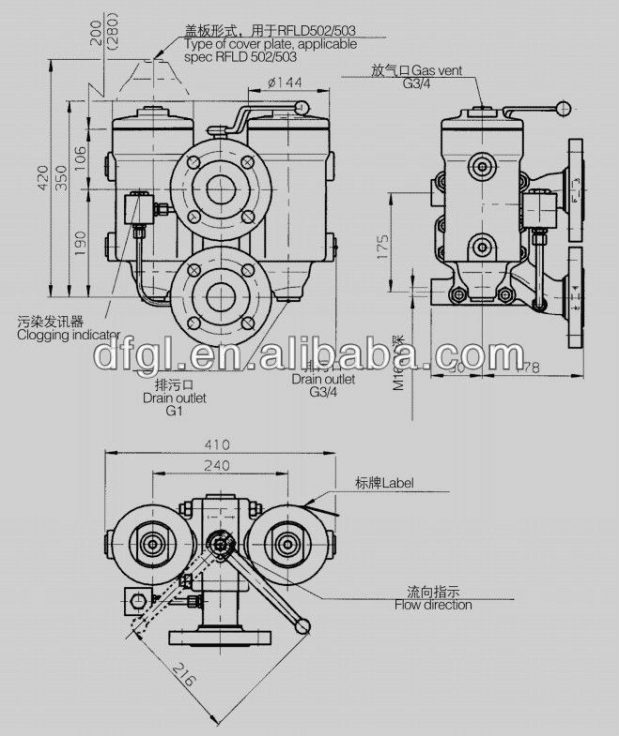

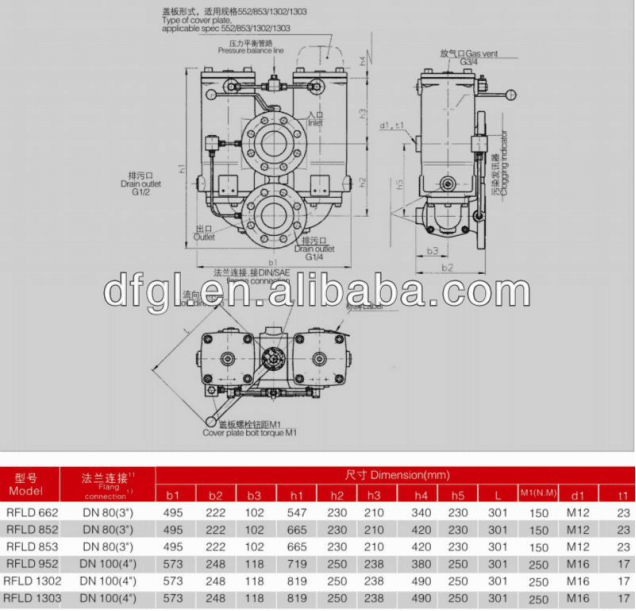

产品安装尺寸:
