产品特点:

Filter basic construction
PLF series filter is composed of filter top cover and spin-on housing. Filter top cover is integral type, according to the customer requirements, the flow direction and the mounting hole position can be custom-made.
2.1 Housing material
Top cover material: Ductile cast iron
Filter bowl material: Carbon steel
2.2 Seals
Perbunan (=NBR) (-30~+120°C);  Viton=FPM (-20~+200°C)
2.3 Filter element
Filter medium material
High strength carbon steel skeleton
2.4 Optional accessories
Electric clogging indicator: CS-V
By-pass valve (Setting 6bar)
2.5 Type of connection (chosen according to the filter type)
Metric thread connection; Inch threaded connection; Flanged connection

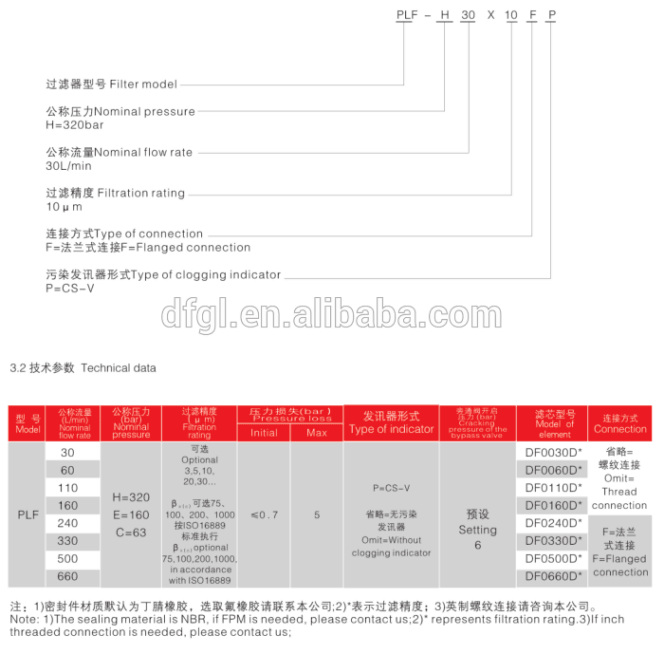

产品类型选择:

产品技术参数:

产品安装尺寸:

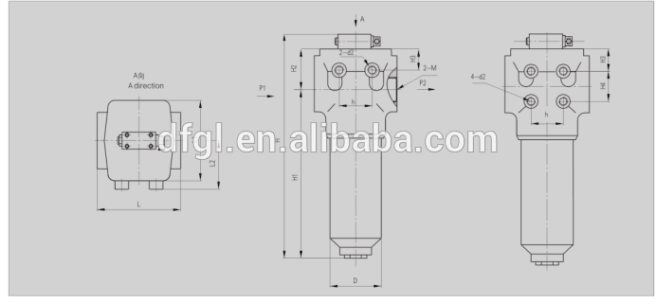

4.1  Threaded Connection

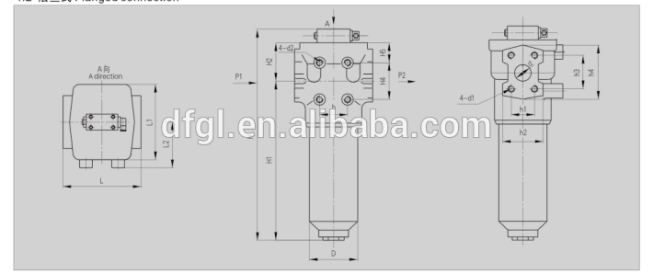

4.2 Flanged Connection
